Thursday, 27 October 2011

AX query/filter with other relative field

One of my colleague posted a question, how do we filter Dynamics AX table with value from another field.
The solution is to put the field name in the query criteria.

An example is better than explaining in words, here goes the sample.

*Remember to put the parentheses () around the query criteria else you'll get error.

This is the data before any filter

Then apply this filter

You’ll get this

So it looks like it does return the correct result

Tuesday, 25 October 2011

Form changes crashed AX client

Recently I made changes to a form and while the form compiled OK and there isn't anything wrong within the code, it keep crashing the AX client when opening it. Debugging into the crashing, it was found that the crashing happens at "sysSaveSetup.loadFormSetup();" in "\Classes\SysSetupFormRun\init".

During the development, several changes is made and throughout the testing, I open and closed the form frequently, it saved the usage data (Eg. the field setup, splitter dragged to other position, and etc). After further changes, the saved usage data does not compatible with the form anymore and everytime when it tries to load it, it crash the AX client.

Quickest solution: Delete the usage data.
  1. Path: Tools > Options > Usage data (button)
  2. Look for the record with your form name and delete it

Friday, 14 October 2011

Dynamics AX 2012 RTM demo data

Direct links

How to deploy all AX2012 report

There're 3 different ways to deploy Dynamics AX2012 reports:
  1. Through AOT
    AOT > SSRS Reports > Reports > right click on report > Deploy Element
  2. Through Visual Studio
    Open the report project > Right click on the project or solution node > Deploy
  3. Through PowerShell
    Publish-AXReport -ReportName *

Through AOT
- Go to AOT > SSRS Reports > Reports > (right click on report) > Deploy Element
- Right click on the report node
- Click "Deploy Element"
Deploy AX2012 report through AOT

Through Visual Studio
- Open the report project
- Right click on the project or solution node
- Click "Deploy"
Deploy AX2012 report through Visual Studio

Through PowerShell
- Go to: Start > Administrative Tools > Microsoft Dynamics AX 2012 Management Shell
- Then enter Publish-AXReport -ReportName *

This will deploy all AX2012 reports into report server, you might want to do this after the initial installation as the report server doesn't have all the report there yet. It takes about 20 minutes for me to deploy all the reports (that's on my Hyper-V image, if run on better spec server, it could be much faster).

If you want to deploy a specific report, just replace the wildcard (*) with the report name.
Eg. Publish-AXReport -ReportName SalesInvoice

*It is the report name under AOT > SSRS Reports > Reports > SalesInvoice, not the project name under AOT > Visual Studio Projects > Dynamics AX Projects > SalesInvoiceReport

Publish-AXReport -ReportName * will deploy all report (use wildcard to deploy full set of report)

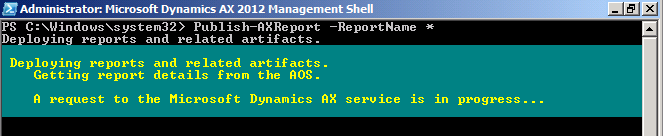

Report deployment in progress

Report deployment in progress

Report deployment in progress

Report deployment completed

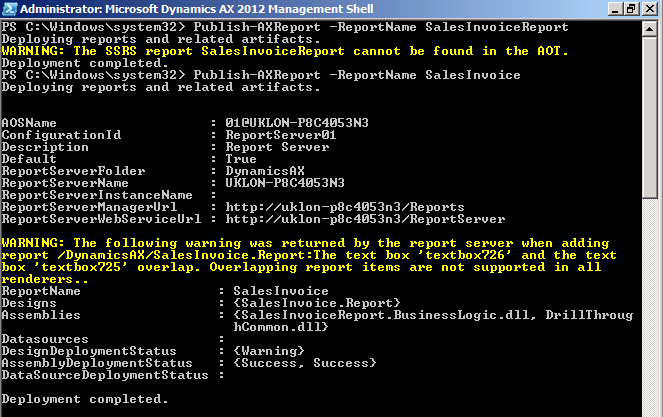

Report name should be the name under AOT > SSRS Reports > Reports > SalesInvoice,
not the project name under AOT > Visual Studio Projects > Dynamics AX Projects > SalesInvoiceReport

PowerShell grid view (Out-GridView) & Integrated Scripting Environment

When working in PowerShell, there're situation where the data is not fully displayed or difficult to read due to the way it was presented. Rather than showing them in a long list, PowerShell Integrated Scripting Environment (ISE) provides a convenient way to present and read them.

Follow these steps to install PowerShell Integrated Scripting Environment (ISE):
1. Go to: Server Manager > Features > Add features.
2. Check the checkbox for "Windows PowerShell Integrated Scripting Environment (ISE)"
3. Click "Next"
4. Click "Install"
5. Click "Close"

To show result in grid view, you can pipe it to Out-GridView.

Example with and without Out-GridView
> Get-Command -Module Microsoft.Dyn*
> Get-Command -Module Microsoft.Dyn* | Out-GridView
> Get-AXModel | Out-GridView

Get-Command -Module Microsoft.Dyn* | Out-GridView

Get-Command -Module Microsoft.Dyn*

Get-AXModel | Out-GridView

Thursday, 13 October 2011

Attempt to install Non-HTTP Activation failed with error code 0x80070643

Was installing IIS feature - WCF Activation this morning and hit this error:

Attempt to install Non-HTTP Activation failed with error code 0x80070643. Fatal error during installation.

After Googling and try and error, removal of .NET Framework 4 resolve the problem.

This resolve the issue:
1. Uninstall the .NET Framework 4.0 Extended
2. Re-run the WCF Activation installation
3. Reinstall .NET Framework 4.0 Extended

Refer to this link for more details:

The steps mentioned above will break the "iisreset /restart". When do the iisreset, it stops the IIS, then it can't start it up after that. You'll find an error in Event Viewer with this details.

Event Id: 1023
Application: SMSvcHost.exe

Framework Version: v4.0.30319

Description: The process was terminated due to an internal error in the .NET Runtime at IP 000007FEE5732730 (000007FEE5730000) with exit code 80131506.
Due to it is just a new virtual server, I've stop speding too much time fixing it, instead, I just do a reinstallation and get the IIS done before anything else.
If you plan to enable the “Windows Communication Foundation (WCF) Activation”, you’re advised to enable that before installing .NET Framework 4.0.

(Path: Server manager > Features > Add features > .NET Framework 3.5.1 Features > WCF Activation)

You’ll hit an error when enabling it if you’ve installed .NET Framework 4.

Friday, 7 October 2011

UTCDateTime field in AX & filtering

When doing filtering at UTCDateTime field in AX, it needs extra caution and consideration. Reason was the timezone & daylight saving. In AX, the UTCDateTime appears to be one field, but it is saved as two separate field in SQL - an extra field with the same name postfix with "TZID".

UTCDateTime field in AX is stored as two field in SQL

When apply filter with a date, it only filter the datetime field, ignoring the timezone.

The server time zone is London, with daylight saving.
When insert a value into UTCDateTime field in AX, it stores the value in SQL without the daylight saving.

- AX: "08/10/2011 00:30:00" (one hour ahead due to daylight saving)
- SQL: "07/10/2011 23:30:00" (stored in SQL without daylight saving)

The screenshots below shows some example of the data and result after apply the filter

Filter with "07/10/2011 00:00:00"
Records with "08/10/2011 00:30:00" appears in the result, it was due to the
actual value stored in SQL is "07/10/2011 23:30:00" which met the filtering criteria

Filter with "07/10/2011 00:00:00".."07/10/2011 23:59:59"
(this filtering value above is automatically converted by AX when "07/10/2011..08/10/2011" is entered)

Showing the datetime value stored in SQL

The actual query sent to SQL Server

If date time filtering is crucial in your solution, you'll need to take extra caution on this.

Thursday, 6 October 2011

Display method "Go to main table"

Just a quick sample for those who need it.

Assuming you have a display method and you want to have "Go to the Main Table Form" for that field, all you need to do is overwrite the "jumpRef()" method.

Go to the form's control, expand it, right click on the "method" node, then "Override method" > "jumpRef".


public void jumpRef()

    SalesQuotationTable salesQuotationTable;
    Args                args;
    MenuFunction        menuFunction;

    salesQuotationTable = SalesQuotationTable::find(this.text());


    args = new Args();

    menuFunction = new MenuFunction(

Sunday, 2 October 2011

Post/update sales quotation through X++

Unfortunately AX doesn't provide convenient API for sales quotation just like it provides for sales order which does the update in a few simple lines.

salesFormLetter = SalesFormLetter::construct(DocumentStatus::PackingSlip);

For Sales quotation, it has the API for part of the status, that's to post/update "Lost" or "Cancel".
To post/update "Quotation" (Sent) or "Confirmation", you'll have to do a little bit of work.

Looking into \Classes\SalesQuotationEditLinesForm\mainOnServer(), it has almost everything you need to update the quotation, but it needs a bit of modification to run without user interaction.  The .prompt() in ::mainOnServer() collect some input through user interaction, you'll need to pass in these parameters to update the quotation so that you can skip the .prompt().

I'll skip elaborate further as I think by looking at a sample code, you'll immediately gets the idea.

The following code assume you have passed in the variable 'salesQuotationTable'.

/* UPDATE SALES QUOTATION TO "Sent" or "Confirmation"

SalesQuotationEditLinesForm  salesQuotationEditLinesForm;
ParmId                       parmId;

salesQuotationEditLinesForm = SalesQuotationEditLinesForm::construct(DocumentStatus::Quotation); //DocumentStatus
parmId                      = salesQuotationEditLinesForm.parmId();


salesQuotationEditLinesForm.initParameters(NoYes::No, //printFormletter,
                                           NoYes::No, //transferHours2Forecast,
                                           NoYes::No, //transferExpenses2Forecast,
                                           NoYes::No, //transferFees2Forecast,
                                           NoYes::No, //transferItems2Forecast,
                                           'TheReasonCode', //reasonCode,
                                           NoYes::No); //usePrintManagement);


/* UPDATE SALES QUOTATION TO "Lost" or "Cancelled"
salesQuotationUpdate = SalesQuotationUpdate::constructFromSalesQuotationTable(salesQuotationTable, SalesQuotationStatus::Cancelled);;


Microsoft Dynamics AX2012 Import-AXModelStore and behind the scene

The suggested method for deploying Dynamics AX2012 code into production environment (Eg. Go live) is to import the model store.

Read more about the difference between model and model store at this link:

Compare AX4, AX2009 and AX2012 deployment:
- AX4, AX2009: Copy layer and label files, replace the destination files (in application folder)
- AX2012: Export model store and import model store

There’re two ways to import model store:
1. Using PowerShell
2. Using AXUtil.exe

The rest of the text below will use PowerShell as the AXUtil will be obsolete in future version of Dynamics AX.

Start Dynamics AX PowerShell from here: All Programs > Administrative Tools > Microsoft Dynamics AX Management Shell

The steps:
  1. Export model store from your source (Eg. UAT environment)
    (Similar to AX2009 copy layer & label files)
    - Export model store
  2. Import model store to destination (Eg. Production environment)
    (Similar to AX2009 replace layer & label files)
    - Create a temporary schema
    - Import model store to temporary schema
    - Apply the model store

Export model store
Export model store is quite straight forward.
Syntax: Export-AXModelStore -File <filename> -Details
Eg. Export-AXModelStore -File “UAT.axmodelstore” –Details

What happen behind the scene?
The Export-AXModelStore connect to SQL server and access the AX database, then select and save the data into file (with the file name you specified in the command).

It gets the database name from AX server (AOS) configuration.
Export-AXModelStore with file name "STD_ModelStore"

Import model store

Create a temporary schema
Create a temporary schema in AX database to be used on next step during import model store.

1. Open SQL Server Management Studio
2. Connect to the SQL Server instance where AX database resides
3. Expand to Databases > [AxDatabaseName] > Security > Schemas
4. Right click > New schema
5. Type in the temporary schema name (Eg. TempSchema) and select the schema owner and click "OK"
6. Initialize the temporary schema (Eg. Initialize-AXModelStore -AOSAccount "Domain\AccountName" -SchemaName <NewSchema> -Server <ServerName> -Database <DatabaseName>)

Import model store to temporary schema
Syntax: Import-AXModelStore -File <filename> -SchemaName
Eg. Import-AXModelStore -File UAT.axmodelstore -SchemaName TempSchema

What happen behind the scene?
The Import-AXModelStore read the *.axmodelstore file and do bulk insert.
It uses .NET SqlBulkCopy class and through TDS (Tabular Data Stream) pushing the data into AX model store tables.

You’ll see the command in SQL server like this: insert bulk [TempSchema].[ModelElementData] ([LayerId] Int, [ParentHandle] Int, [ElementHandle] Int, [LegacyId] Int, [Properties] VarBinary(max), [FileHeader] VarBinary(max), [BASEVERSION] Int, [VERSION] Int, [SAVECOUNT] Int, [CONSISTENCYDATA] Int, [MODIFIEDDATETIME] DateTime, [MODIFIEDBY] NVarChar(5) COLLATE SQL_Latin1_General_CP1_CI_AS, [CREATEDDATETIME] DateTime, [CREATEDBY] NVarChar(5) COLLATE SQL_Latin1_General_CP1_CI_AS, [ElementVersion] Int, [ModelId] Int) with (TABLOCK)

This "INSERT BULK" is different than the "BULK INSERT", it can’t be used in SQL server directly, it has to go through API.
Import-AXModelStore with file name "UAT.axmodelstore" and schema "TempSchema"

Apply the model store
Syntax: Import-AXModelStore -Apply:TemporarySchema
Eg: Import-AXModelStore -Apply:TempSchema

What happen behind the scene?
It execute several stored procedures to transfer the temporary schema to default.
- XU_IsSchemaEmpty
- XU_CreateSchema
- XU_TransferObjectsToSchema
and etc

Apply model store (Import-AXModelStore -Apply) with the temporary schema imported earlier

You doesn't need to manually remove the temporary schema after apply it as they won't remain in the AX database after the APPLY process.

But if you decided not to apply the model store, you can remove it with the following syntax.

Syntax: Initialize-AXModelStore –Drop
Eg: Initialize-AXModelStore –Drop TempSchema

If you prefer to directly import the model store into default schema and replace it, do remember when it hit ID conflict, the import will stop.

For more details about working on model store, visit this link:

Misc. screenshot during my test

Create AX model store (Initialize-AXModelStore)
Import-AXModelstore error due to database referred in AOS settings does not exist

Initialize-AXModelStore error on pre-release AX2012 database due to stored procedure - "XU_DropSchema" does not exist
Import-AXModelStore error when schema does not exist

Import-AXModelStore error when Id conflict detected
Apply AX model store (Import-AXModelStore -Apply) error when applying the RTM model store to pre-release AX database due to XU_CreateSchema does not exist in pre-release database

Apply AX model store (Import-AXModelStore -Apply) error when applying the RTM model store to pre-release AX database due to pre-release database stored proc is outdated, has different number of parameters

Some of the tables created using Initialize-AXModelStore (to get the full list, you can query the list of objects attached to the schema you created through the Initialize-AXModelStore)


Saturday, 1 October 2011

Error on Initialize-AXModelStore –Drop

If you're playing around with Initialize-AXModelStore in the AX database from pre-release of AX2012, you might hit error when trying to drop a schema.

You created a model stored schema with Initialize-AXModelStore -AOSAccount "Domain\AccountName" -SchemaName <newschema> -Server <servername> -Database <databasename>
Then when you run Initialize-AXModelStore –Drop <schemaname>, you hit error claiming the XU_DropSchema does not exist.

It is simply because the pre-release database doesn't have the required stored procedure to drop the schema.

All you need to do is
  1. Gnerate CREATE script for XU_DropSchema from the new model store schema you just created
  2. Change the stored procedure name to [dbo].[XU_DropSchema], execute it
  3. Then rerun the Initialize-AXModelStore –Drop
