Monday 25 June 2018

SFTP setup and Logic App testing

A short article regarding setting up an SFTP for testing.

It covers:
  • Rebex Tiny SFTP Server
  • Add inbound/outbound rules in Windows Firewall
  • Add inbound/outbound port rules in VM Networking
  • Setup Inbound NAT rules in Azure load balancer
  • Configure Logic App SFTP connection


Rebex Tiny SFTP Server
In my case, I’m using Rebex Tiny SFTP Server (Free) and running it in Azure hosted VM.
You may download it from: https://labs.rebex.net/tiny-sftp-server

It doesn’t requires installation, just download and unzip it.
You may change the username, password, and root directory in the config file “RebexTinySftpServer.exe.config”.



Windows Firewall

Before running the application (RebexTinySftpServer.exe), we’ll need to get the ports opened.

Inbound rules for SFTP

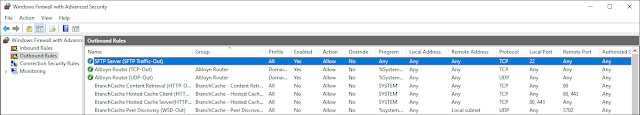

Outbound rules for SFTP


Azure networking

Go to: Virtual machines (select the VM) > Networking
  • Add inbound port rule
  • Add outbound port rule




Load balancer

Go to: : Virtual machines (select the VM) > Overview
Click on the link under the “DNS name”, take note of the name of the load balancer in the Configuration screen.


Go to: Load balancer (Select the load balancer as you’ve taken note of in previous step) > Settings > Inbound NAT rules


Add the SFTP rule

Run the Rebex Tiny SFTP Server and try connect to it using your SFTP client (Eg. FileZilla).
Confirm it is working before testing your Logic App.


Configure Logic App SFTP connection

You may configure Logic App SFTP connection for testing.
Below is an example of the screen creating the SFTP connection (Replace the value in the Connection Name, Host Server Address, and User Name as setup in your Rebex Tiny SFTP server).

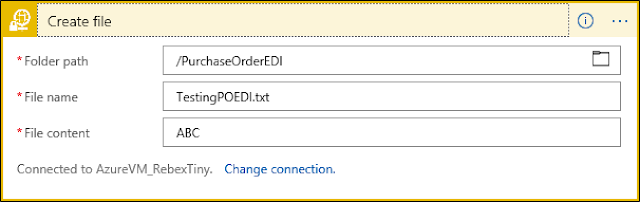

You can then test create file via the SFTP connection you’ve just setup
